Air Conditioner Curb Installation
The Bow Tie Royale 6 Cinema Theater contracted Commercial Roof USA to install an air conditioning unit on an EPDM flat roof at 542 Westport Ave., Norwalk, CT. The curb was supplied by the The Heating and Cooling Company located in Norwalk, CT. Mike Tavolacci marked exactly where the curb would be positioned on the roof. We installed the air conditioner curb with vibration dampers used to minimize noise.
Video Transcript - Air Conditioner Curb Installation on a Flat Roof
Hi I’m Erik from Commercial Roof USA And today they called us to do this commercial roof It’s an EPDM roof and they called us because they need us to flash a 10 ton A/C unit Now this needs more than just flashing done.
This roof is unleveled so were gonna have to level it you can see there the bubble is off a little bit So um what we are gonna do is we’re gonna level it first. Then on the inside there where you can see the orange marker uh we’re gonna cut the vent the vent or the intake vent and then we’re gonna have to flash the whole thing and uh the way we do it is a is a double step process where we flash on the inside and on the outside so they’ll never have a leak again. I’ll be showing you every step of the way.
This is how to flash a 10 ton A/C unit Alright well we’ve installed the ah curb and we vulcanized the unit here and uh we’ve installed this tarp on here so that when the HVAC people are ready they can just put the unit down on top This is how you install and vulcanize a curb
A/C Curb Installation – Process:
The a/c curb installation process required us to cut through the EPDM rubber at the markings. Then, we removed a 3″ insulation isoboard. Under the the insulation was a 5/8″ gypsum board. After removing the EPDM rubber, insulation, and gypsum board, we had to cut through the metal sub roof, which is the opening for the intake duct to the A/C unit.
Placing the Curb into Position
After the opening was made for the duct work, we placed the curb into position. Because the roof is slightly slanted, one side of the curb had to be lifted to be level. After leveling the curb, we anchored it down with 4″ screws to the metal sub roof.
After anchoring the curb, we vulcanized the entire curb with EPDM cover tape, and carefully added the flashing, as well, to tie it into the existing rubber roof.
Images of A/C Curb Installation Steps:

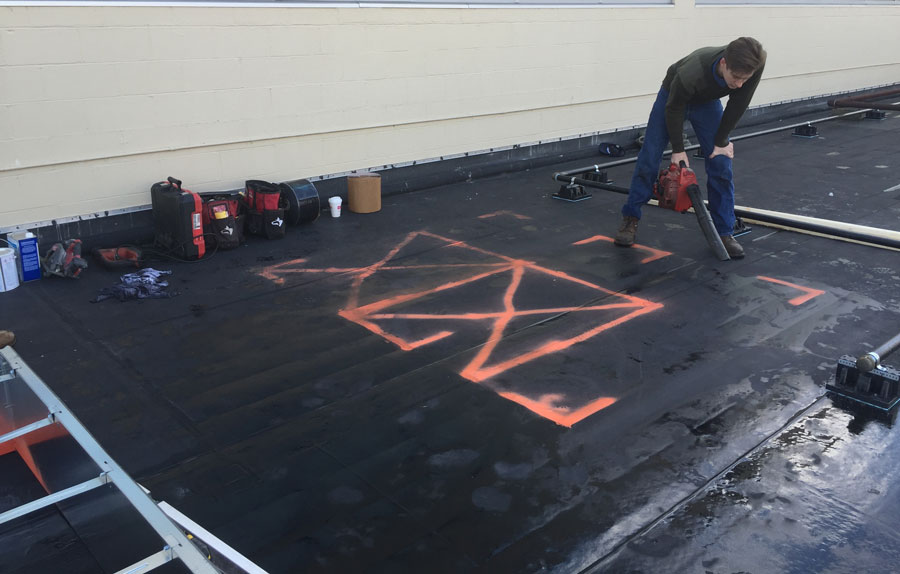

- Make sure all the measurements are correct and the location is properly marked.
- Prep surface area by removing all debris and water.
3. Cut the rubber and insulation away to expose the metal sub roof.
4. Below is the metal sub roof after the EPDM and insulation was removed. Use a metal reciprocating saw to cut this section out.
Extreme caution must be taken during steps 3 and 4 because there could be electrical wires on the underside of the metal roof. In this case a drop ceiling hanger wire was attached to the the metal so we were fortunate enough to remove it without disturbing the drop ceiling.

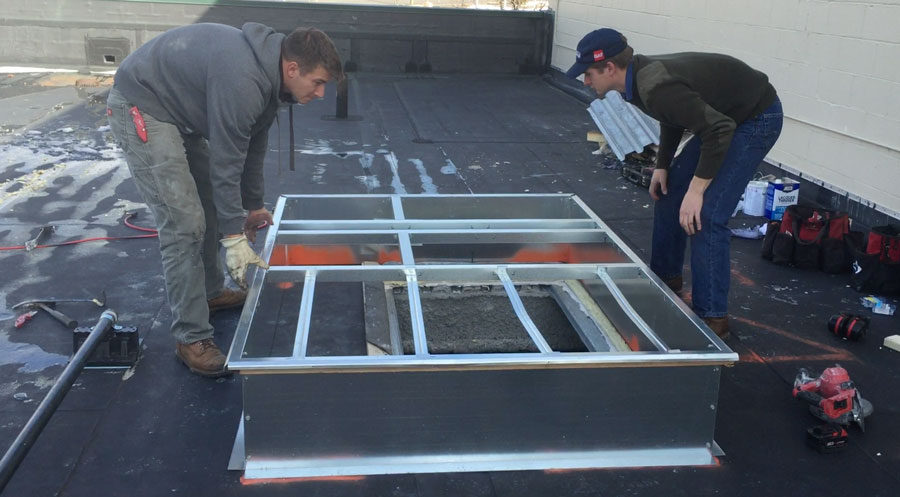

5. Placing curb into position and ensuring it is level:
Since the roof was slightly slanted, we had to lift the curb by 5/8″ on one side to get it level. It is important to have it absolutely level; if it is not level, the bearings will wear of faster on the A/C unit.
6. Leveling the curb.
The roof is slightly slanted and it was necessary to level the curb before we started to install the flashing. We used 5/8″ wood strips under the one end of the curb. After getting it level we secured the curb to the roof with 4″ screws that held is into place.
7. Vulcanizing and flashing the air conditioner curb.
Once the curb was leveled we covered the entire outside of the curb with EPDM cover tape. To flash the curb, it is necessary to clean the existing roofing surface very well. We used lacquer thinners and rags to remove all the oxidation from the surface where we needed to adhere the new EPDM cover tape.
After the cleaning, we brushed primer to the surface and waited for it to dry. After a touch dry test, we installed the cover tape and flashed the entire unit.

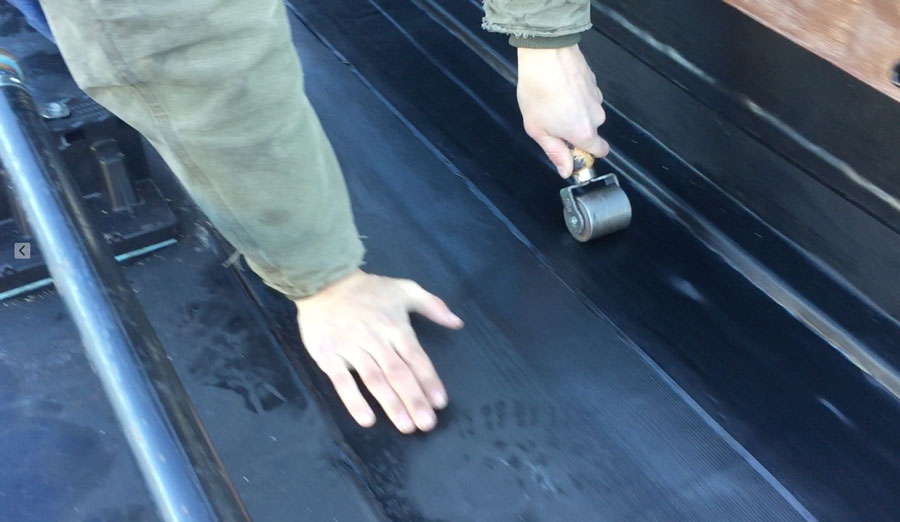

8. Installing the flashing.
In the case of an EPDM roof, it is necessary to use compatible material to do the flashing. In this case we used EPDM cover tape. It is very important to use a roller to roll the cover tape so it can properly adhere to the EPDM rubber.

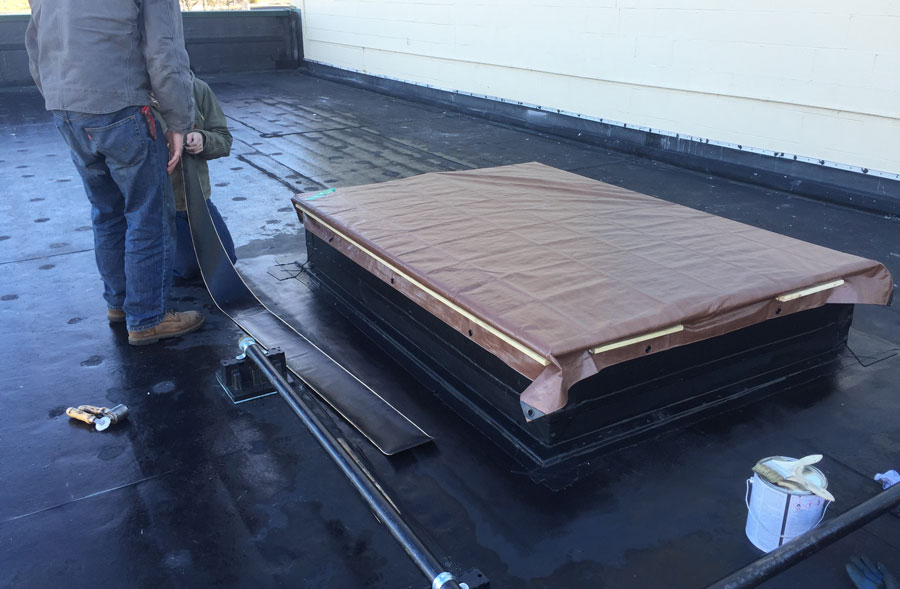

9. Cover the curb with a tarp.
It is difficult to coordinate two different trade crews to complete a A/C unit installment on the same day, but if the A/C contractor marks out where the curb will be installed and leaves the curb on the roof, we can then notify them when the curbing has been completely installed and is ready for the A/C installation.
10. The proper material for the right job

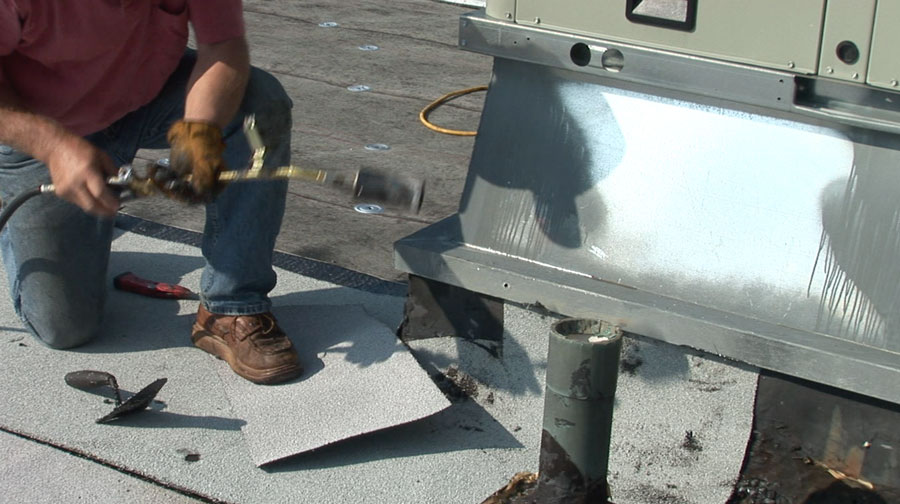

Whenever there is curb to be installed or flashing that needs to be done, it is important to use compatible materials. On an EPDM roof, only EPDM materials must be used. The same principle applies to a Modified Bitumen Torch Down roof; only Modified Bitumen materials should be used. Sometimes, we find that this principle is not practiced by other roofing contractors. In the images below we are flashing a curb with Modified Bitumen Membrane Torch Down material.
The image below is also a Modified Bitumen Membrane curb installation. It is essential that a special tar be used to try and seal any flashing, but it should be used very sparingly. Installing a curb is very important and should only be done by professionals.
